SVUBR INDEXABLE BORING BAR #I42

DKK275.63 - DKK332.50 (Inkl. Moms)
DKK220.50 - DKK266.00 (Ekskl. Moms)
CTC Tools - SVUBR indexable boring bar, engineered for efficient machining processes.
SKU:
I42
Tilføjer til varekurv… Varen er tilføjet

Product Overview



...
  SVUBR BORING BAR
...


S Type with Screw Lock Clamping System For ISO Type VBMT Inserts - Shank Sizes 16mm to 20mm
Versions are for Right Hand Feed Direction as depictured








Model No.
Insert
Size (mm)
Screw
Wrench
Minimum Bore
Φd
f
l
l1
h
a°
S16Q-SVUBR11
VB_T1103..
Φ22
16
11.5
160
24
15
10°
SC250744
T-8
S20R-SVUBR11
Φ27
20
14
180
30
18
8°





ITEM(S)
  • 1 pc. Boring Bar
  • 1 pc. Locking Screw
  • 1 pc. Torx Wrench


    • APPLICATION
  • Approach Angle 95º
  • Boring

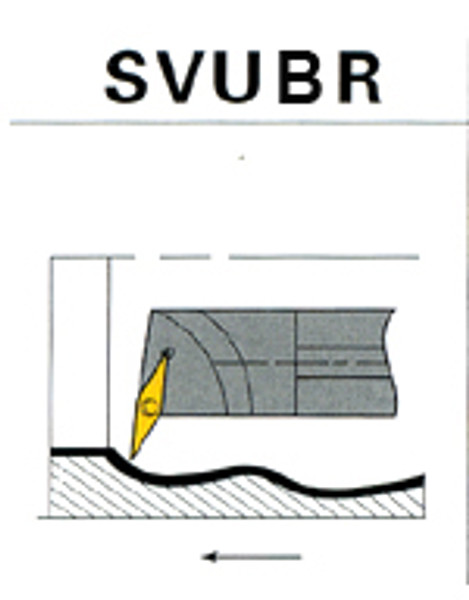

  • SVUBR boring bars use the two 35º corners of the positive rake VBMT inserts mounted at 95º to the axis of the lathe. Their shape allows straight boring to a shoulder and internal profiling. These boring bars can generally work with overhangs of up to 5 times the boring bar diameter without the tool starting to vibrate.
  • Use with VBMT inserts as our item no. J16 and J17 for medium cutting or J18 (VBGT) for cutting aluminium and finish cutting of steel


    • SPECIFICATION
  • Screwdown Locking
  • Tool Holder made of High Density Forged Alloy Steel
  • Hardened to HRC40, Ground and Black Oxidated or Silver Coated depending on Size
  • Right Hand Version as depictured
