MTFNR/L INDEXABLE TURNING TOOL HOLDER #I18

DKK240.63 - DKK374.06 (Inkl. Moms)
DKK192.50 - DKK299.25 (Ekskl. Moms)
CTC Tools - MTFNR/L indexable turning tool holder for external lathe turning in metal machining.
SKU:
I18
Tilføjer til varekurv… Varen er tilføjet

Product Overview



...

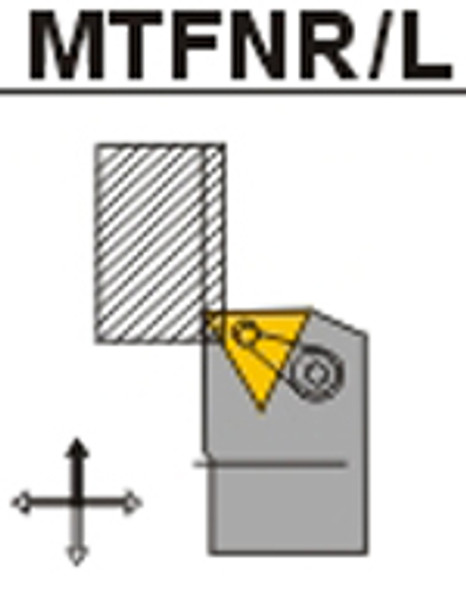

  MTFNR/L EXTERNAL LATHE TOOL HOLDER
...


M Type with Top & Side Wedge Clamping System For ISO Type TN Inserts - Shank Sizes 6mm to 32mm








Model No.
Insert
Size (mm)
Shim
Shim Screw
Clamp
Clamp Screw
Wrench
h
b
l

f
MTFNR/L1616H16
TN..1604..
16
16
100
20
MT1603
MX0513
MY0619
ML0625
L2,L3
MTFNR/L2020K16
20
20
125
25
MTFNR/L2525M16
25
25
150
32
MTFNR/L3232P16
32
32
170
40
MTFNR/L2525M22
TN..2204..
25
25
150
32
MT2204
MX0617
MY0819
ML0828
L2.5,L4
MTFNR/L3232P22
32
32
170
32


ITEM(S)

  • 1 pc. Tool Holder
  • 1 pc. Shim for Insert
  • 1 pc. Screw for Insert
  • 1 pc. Clamp
  • 1 pc. Clamp Screw
  • Torx Wrench(es)



SPECIFICATION

  • Turning Tool Holder with Multi-Lock Top and Side Wedge Clamping System
  • Made of forged Alloy Steel
  • Hardened to HRC45
  • Corrosion resistant Black Oxide Finish
