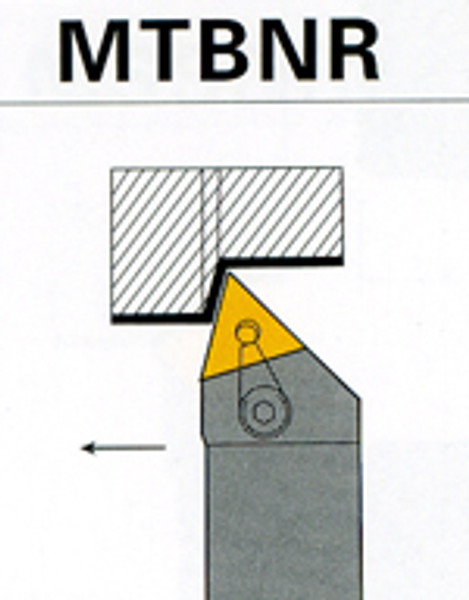

| MTBNR/L EXTERNAL LATHE TOOL HOLDER | ||
 | ||
M Type with Top & Side Wedge Clamping System For ISO Type TN Inserts - Shank Sizes 20mm to 25mm
Model No. | Insert | Size (mm) | Shim | Shim Screw | Clamp | Clamp Screw | Wrench | ||||
h | b | l | f | ||||||||
MTBNR/L2020K16 | TN..1604.. | 20 | 20 | 125 | 15.5 | MT1603 | MX0513 | MY0619 | ML0625 | L2,L3 | |
MTBNR/L2525M16 | 25 | 25 | 150 | 20.5 | |||||||
|  |
