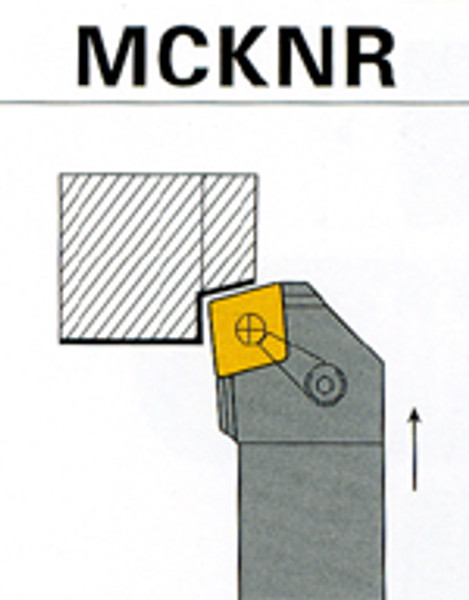

| MCKNR/L EXTERNAL LATHE TOOL HOLDER | ||
 | ||
M Type with Top & Side Wedge Clamping System For ISO Type CN Inserts - Shank Sizes 20mm to 32mm
Model No. | Insert | Size (mm) | Shim | Shim Screw | Clamp | Clamp Screw | Wrench | ||||
h | b | l | f | ||||||||
MCKNR/L2020K12 | CN..1204.. | 20 | 20 | 125 | 25 | MC1204 | MX0617 | MY0619 | ML0625 | L2.5,L3 | |
MCKNR/L2525M12 | 25 | 25 | 150 | 32 | |||||||
MCKNR/L3232P12 | 32 | 32 | 170 | 40 | |||||||
|  |
