| STUPR BORING BAR | ||
 | ||
S Type with Screw Lock Clamping System For ISO Type TPMT Inserts - Shank Sizes 8Mm to 20mm

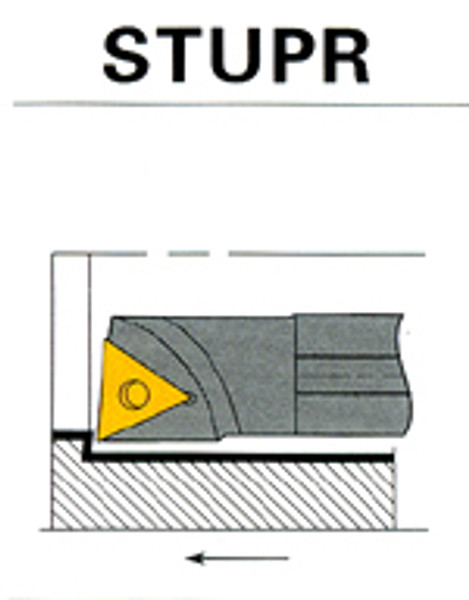

Versions are for Right Hand Feed Direction as depictured
| Model No. | Insert | Size (mm) | Screw | Wrench | ||||||
| Minimum Bore | Φd | f | l | l1 | h | a° | ||||
| S08K-STUPR09 | TPMT090204.. | Φ11 | 8 | 5 | 125 | 12 | 7 | 10 | SC250544 | T-8 |
| S10K-STUPR11 | TPMT110204.. | Φ13 | 10 | 6 | 125 | 15 | 9 | 12 | SC300560 | T-8 |
| S12M-STUPR11 | Φ16 | 12 | 7 | 150 | 18 | 11 | 10 | |||
| S16Q-STUPR11 | Φ20 | 16 | 9 | 160 | 24 | 15 | 8 | SC300760 | ||
| S20R-STUPR11 | Φ24 | 20 | 11 | 180 | 30 | 19 | 6 | |||
