Product Overview
 | ||

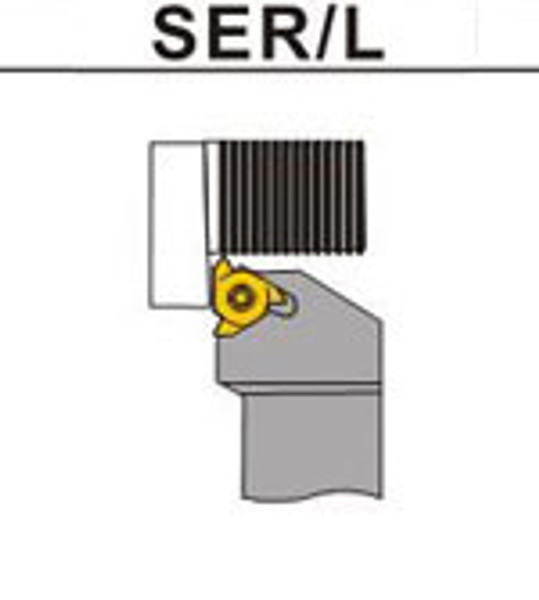

| SER/L EXTERNAL THREADING TOOL HOLDER | ||
 | ||
S Type with Screw Lock Clamping System For ISO Type ER/L Inserts - Shank Sizes 10mm to 32mm
| Model No. | Insert | Size (mm) | Shim | Shim Screw | Side Wedge Screw | Wrench | ||||
| h | b | l | h1 | f | ||||||
| SER/L-1010H11 | 11ER/L.. | 10 | 10 | 100 | 10 | 12 | | SC250744 | | T-8 |
| SER/L-1212H16 | 16ER/L.. | 12 | 12 | 100 | 12 | 16 | SC350756 | T15 | ||
| SER/L-1616H16 | 16 | 16 | 100 | 16 | 20 | YE16(R)YI16(L) | SC351260 | SA3007 | T15 | |
| SER/L-2020K16 | 20 | 20 | 125 | 20 | 25 | |||||
| SER/L-2525M16 | 25 | 25 | 150 | 25 | 32 | |||||
| SER/L-3232P16 | 32 | 32 | 170 | 32 | 40 | |||||
|  |
