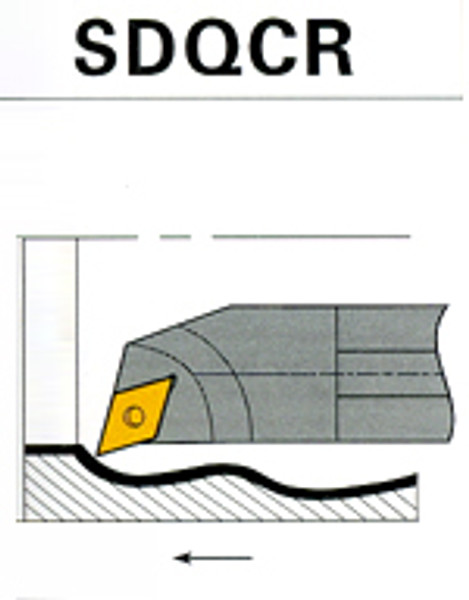

| SDQCR BORING BAR | ||
 | ||
S Type with Screw Lock Clamping System For ISO Type DCMT Inserts - Shank Sizes 10mm to 25mm
Versions are for Right Hand Feed Direction as depictured
| Model No. | Insert | Size (mm) | Screw | Wrench | ||||||
| Minimum Bore | Φd | f | l | l1 | h | a° | ||||
| S10K-SDQCR07 | DCMT0702.. | Φ13 | 10 | 7 | 125 | 15 | 9 | 10° | SC250544 | T-8 |
| S12M-SDQCR07 | Φ16 | 12 | 9 | 150 | 18 | 11 | 8° | |||
| S16Q-SDQCR07 | Φ20 | 16 | 10.5 | 160 | 24 | 15 | 6° | |||
| S20R-SDQCR11 | DCMT11T3.. | Φ25 | 20 | 13 | 180 | 30 | 18 | 6° | SC350960 | T-15 |
| S25S-SDQCR11 | Φ32 | 25 | 16 | 200 | 38 | 23 | 4° | |||
