Product Overview
 |
||

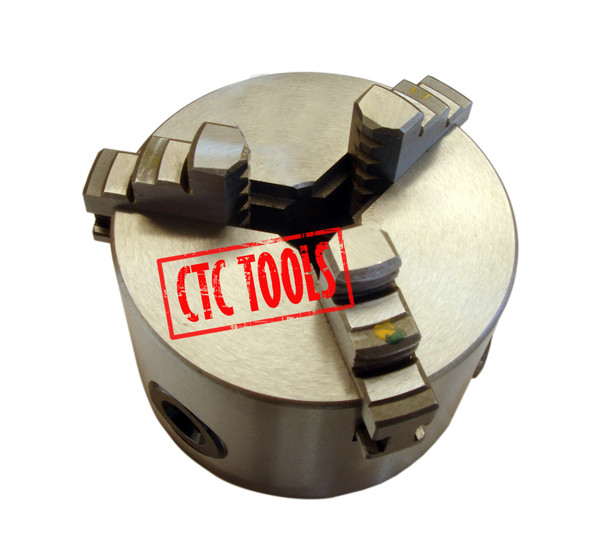

| 3" SELF CENTERING 3-JAW LATHE CHUCK #L35 | ||
 |
||
For Lathes, Rotary Tables and Dividing Heads. Backplate Mounting. Available Sizes 80mm (3") to 250mm (10").
Ask for a Surface Mail Quote for the Bigger Chucks
|
Chuck Size
|
Holding Range
|
Dimensions
|
Factory Run-Out
|
||||||
|
InInternal Jaws
|
InExternal Jaws
|
Diameter
|
Register
|
Register Length
|
Bolt Circle
|
Chucked Test Bar
|
|||
|
In(mm)
|
|||||||||
|
Inside
|
Outside
|
Inside
|
|
||||||
|
80mm (3")
|
2-22
|
25-70
|
22-63
|
80
|
55
|
3
|
M6x3
|
0.08 at 50mm from Chuck
|
|
|
100mm (4")
|
2-30
|
30-90
|
30-80
|
100
|
72
|
M8x3
|
|||
|
125mm (5")
|
2.5-40
|
38-125
|
38-110
|
125
|
95
|
||||
|
160mm (6")
|
3-55
|
50-160
|
55-145
|
160
|
130
|
5
|
|||
|
200mm (8")
|
4-85
|
65-200
|
65-200
|
200
|
165
|
M10x3
|
0.1 at 50mm from Chuck
|
||
|
250mm (10")
|
6-110
|
80-250
|
90-250
|
250
|
206
|
M12x3
|
0.1 at 75mm from Chuck
|
||
