RIGHT ANGLE SHOULDER END MILL - BAP #P25

DKK157.50 - DKK413.44 (Inkl. Moms)
DKK126.00 - DKK330.75 (Ekskl. Moms)

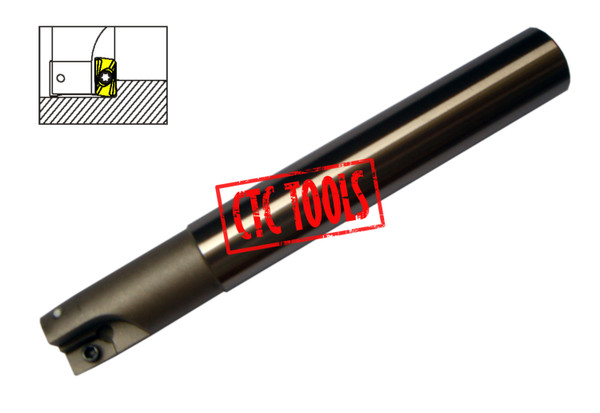

CTC Tools - Right angle shoulder end mill, BAP, designed for precision shoulder milling.
SKU:
P25
Tilføjer til varekurv… Varen er tilføjet

Product Overview



...
  INDEXABLE RIGHT ANGLE SHOULDER END MILL
...



Indexable for ISO/ANSI Standard AP_T Inserts. Available in Cutting Diameter Sizes 10mm to 32mm and Length 100mm to 200mm



ITEM(S)
  • 1 pc. End Mill
  • Locking Screws for Inserts
  • 1 pc. Torx Wrench


APPLICATION
  • Roughing, Finishing, Copying, Pocket-/Slot-/Shoulder-Milling
  • AP_T Inserts available for most Work Materials


SPECIFICATION
  • Right Angle Shoulder End Mill
  • 1/2/3 Fluted depending on Size
  • Uses AP_T 1135 or AP_T1604 Inserts depending on Size
  • Screw Locking of Insert
  • Tool Holder made of High Density Forged Alloy Steel
  • Hardened to HRC40, Ground and Black or Silver Coated depending on Size




Model No.
No. of Teeth f
Insert
Dimensions (mm)
Screw
Wrench
D
d
L

L1
a
BAP-300R-C10-10-100-1T
1



AP_T1135






10

10

 100 30 9
M2.5x6






T8






BAP-300R-C10-10-120-1T
 120
BAP-300R-C12-12-130-1T
12
12
BAP-300R-C12-13-130-1T
 13 130
BAP-300R-C16-16-120-2T
2

16


16
 120 40
BAP-300R-C16-16-150-2T
 150 50
BAP-300R-C16-16-200-2T
 200 60
BAP-300R-C16-17-120-2T
 17 120 40
BAP-300R-C16-17-150-2T
 150
BAP-300R-C16-17-200-2T
 200
BAP-300R-C20-20-120-2T
 20 20 120 35
BAP-300R-C20-20-150-2T
 150 50
BAP-300R-C20-20-200-2T
 200 60
BAP-300R-C20-21-120-2T
 21 120 50
BAP-300R-C20-21-150-2T
 150
BAP-300R-C20-21-200-2T
 200
BAP-300R-C25-25-150-3T
 3 25 25 150
BAP-400R-C25-25-150-2T
 2
AP_T1604
 14 M4x10 T15
BAP-400R-C25-25-200-2T 200 60
BAP-400R-C25-30-150-2T 30 150 45
BAP-400R-C25-30-200-2T 200
BAP-400R-C32-32-150-3T 3 32 32 150 50
BAP-400R-C32-32-200-3T 200 60
