DIAL TEST INDICATOR GAUGE
& CAM-LOCK MAGNETIC BASE
High Precision Jewelled Dial Test Indicator & Base With One Knob Locking System
ITEM(S) 1 Pc. Highly Sensitive Lever Arm Type Dial Test Indicator Gauge In Fitted Plastic Box 1 Pc. Magnetic Base With Cam-Lock Arm
SPECIFICATION
Dial Test Indicator Gauge Read-Out in Metric Dial Graduation 0.002MM Jeweled. Maximum travel +/-0.1mm Rotating Bezel For Zero Setting Dial Face Diameter 36MM Universal Dovetail Adaptor on 3 Facets 6MM (1/4") & 8MM (5/16") Round Stem Adaptors Hardened Stylus Point Satin Chrome Finish Magnetic Base With Cam-Lock Arm The Turning Of The Tension Knob Results In Locking The Joints, Holding The Aluminium Arms Absolutely Rigid Multiple Holding Positions Through 360° Swivel Ball Joints With One Knob Locking System For Fast Set-Up Reduced Scale For work In Tight Areas Strong Magnet With On/Off Switch Quickly Attached To Any Magnetic Surface Vertical Mount Workable V-Shape On Magnetic Bottom Surface For Firm Holding On Round Or Flat Surface 5/16” (8mm) Clamping Hole For Standard Indicator Stems Universal Dovetail Clamp For Dial Test Indicators Overall Reach: 7.5" (190mm) Base Size: 30mm (Width) x 37mm (Depth) Delivered In High Quality Anodized Finish

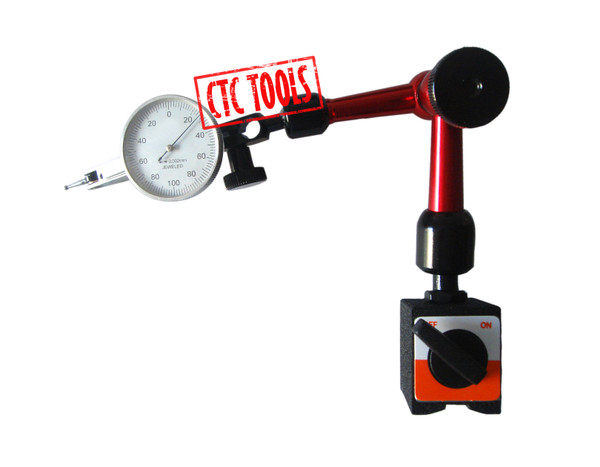

PRODUCT PHOTOS
