Product Overview

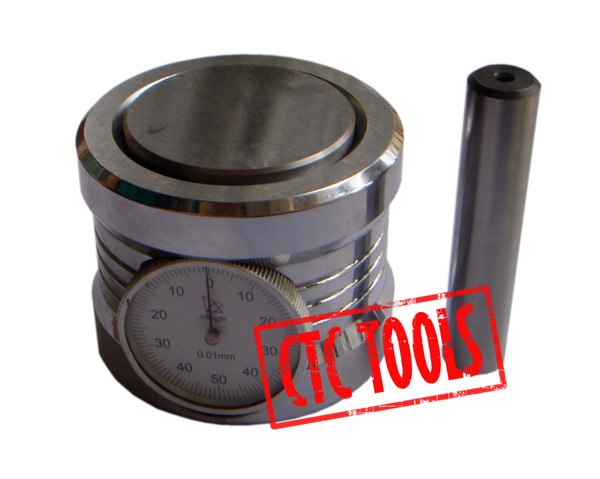

MECHANICAL Z-AXIS PRE-SETTER WITH DIAL
Same precision as the electronic version but maintenance free without batteries
ITEM(S)
- 1 Pc. High Precision Z-Axis Zero Setter with Setting Pin In Fitted Case
APPLICATION
- The Tool Pre-Setter (Z-axis Zero Setter) Is Used In CNC-Milling Machining Centers To Set The Tool Height In Reference To The Machine Table Or The Work Piece Surface
- The Plunger of the Pre-Setter is calibrated at exactly 50mm and the Dial Zero'ed prior to each use. The Cutting Tool is lowered to touch the Spring-Loaded Plunger and adjusted until the Dial is Zero'ed again
SPECIFICATION
- Setting Height 50±0.005mm
- Base Diameter 50mm
- Magnetic Base
- Spring Loaded Plunger
PRODUCT PHOTOS
|
|
|
|
|
|
